1000 kW (1 mW) Prime Power Natural Gas Generator (600/347V Three Phase 60Hz)
The 1000 kW (1 mW) Prime Power Natural Gas Generator (600/347V Three Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Model
Rated Power |
1000 kW (1 mW) 1250 kVA |
Fuel Type |
Natural Gas (PNG) |
Output
Voltage |
600/347V |
Phase |
3 Phase 4 Wires |
Frequency |
60 Hz |
Rated Speed |
1800 RPM |
Power Factor |
0.8 |
Engine Manufacturer |
Baudouin |
Alternator Manufacturer |
Stamford |
Control Module Manufacturer |
Deep Sea |
Parallel Circut Breaker |
ABB/4P/E1B 1600 D LI FF 4P NST Intelligent Circuit Breaker |
Solenoid Valve |
DUNGS, Germany or Honeywell, USA |
Pressure Regulating Valve |
MADAS, Italy |

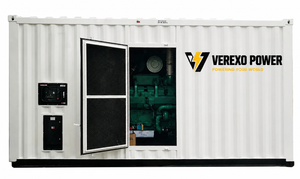

40HQ Silent Containerized Enclosure Treatment |
Acid Pickling and Phosphating Treatment, Anti-rust, Anti-corrosion |
Dimensions
|
12,030 x 2,440 x 2,380 |
Approximate Weight (kg) |
13,500 kg |
Standard configuration
Pressure regulating valve, filter, flame arrester, flange, DN80 flange, Maintenance free battery, battery connector, Shock absorbing pad, Muffler (Installed), etc.
Each machine is equipped with a Gas leak alarm, an explosion-proof lamp, Automatic shut-off valve.
- Copper 50° Radiator
- 24V DC Start Motor
- High-Performance Circuit Breaker
- Linear Vibration Isolators between the Base and Engine-Generator
- Liquid Cooled
2 Separate Cooling Systems
- High-temperature circuit equipped with a thermostatically-controlled system with two gear-driven coolant pumps
- Low-temperature circuit equipped with belt-driven coolant pump.
OPTIONS/ADD-ONS AVAILABLE
The 1000 kW (1 mW) Prime Power Natural Gas Generator (600/347V Three Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Model
Rated Power |
1000 kW (1 mW) 1250 kVA |
Fuel Type |
Natural Gas (PNG) |
Output
Voltage |
600/347V |
Phase |
3 Phase 4 Wires |
Frequency |
60 Hz |
Rated Speed |
1800 RPM |
Power Factor |
0.8 |
Engine Manufacturer |
Baudouin |
Alternator Manufacturer |
Stamford |
Control Module Manufacturer |
Deep Sea |
Parallel Circut Breaker |
ABB/4P/E1B 1600 D LI FF 4P NST Intelligent Circuit Breaker |
Solenoid Valve |
DUNGS, Germany or Honeywell, USA |
Pressure Regulating Valve |
MADAS, Italy |
40HQ Silent Containerized Enclosure Treatment |
Acid Pickling and Phosphating Treatment, Anti-rust, Anti-corrosion |
Dimensions
|
12,030 x 2,440 x 2,380 |
Approximate Weight (kg) |
13,500 kg |
Standard configuration
Pressure regulating valve, filter, flame arrester, flange, DN80 flange, Maintenance free battery, battery connector, Shock absorbing pad, Muffler (Installed), etc.
Each machine is equipped with a Gas leak alarm, an explosion-proof lamp, Automatic shut-off valve.
- Copper 50° Radiator
- 24V DC Start Motor
- High-Performance Circuit Breaker
- Linear Vibration Isolators between the Base and Engine-Generator
- Liquid Cooled
2 Separate Cooling Systems
- High-temperature circuit equipped with a thermostatically-controlled system with two gear-driven coolant pumps
- Low-temperature circuit equipped with belt-driven coolant pump.
OPTIONS/ADD-ONS AVAILABLE
