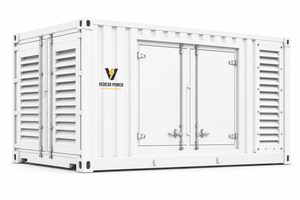

600 kW Prime Power Diesel Generator (Volvo Engine) (480/277V Three Phase 60Hz)
The 600 kW Prime Power Diesel Generator (Volvo Engine) (480/277V Three Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Powered by Volvo Engine, Stamford Alternator, and Deepsea Control Panel
Included Features
-
Technologically advanced Remote Wifi Controller
-
Next-Generation Brushless Stamford CSA Approved Alternator
-
Inbuilt Webasto Style Coolant Heater to prevent cold starts and increase the engine's longevity
-
Silent Soundproof Weather Protection Canopy/Enclosure
-
Standard 8 Hour Dual Wall Base Fuel Tank
-
Electronic Speed Governor
Prime power
This rating is for continuous electrical power supply (at variable load). There is no limit on the annual hours of operation, and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Features
-
Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load, 110% load and the checking and proving of all control and safety shut-down functions
-
24V DC start motor
-
Equipped 24V high-performance maintenance-free lead-acid starting batteries
-
Equipped with industrial silencer and flexible exhaust hose
-
Designed to Comply with ISO8528/GB2820, NEC, CEC
Volvo Engine Technical Data
Model |
TWD1645GE |
Manufacturer |
Volvo |
Number of Cylinders |
6 Cylinders Inline |
Cycle |
4 Stroke |
Aspiration |
Wastegate Turbocharged |
Bore x Stroke (mm x mm) |
144 x 165 |
Displacement |
16.12 L |
Compression Ratio |
16.8:1 |
Prime Power / Speed |
619 kW/1800rpm |
Standby Power / Speed |
681 kW/1800rpm |
Speed Governor |
ECM |
Cooling System |
Forced Liquid Cooling Cycle |
Steady Speed Drop |
≤1% |
Total Lubrication System Capacity |
58 L |
Fuel Consumption at 75% Load |
105 L/h |
||
Starter Motor |
DC24V |
Alternator |
DC24V |
Stamford Alternator Technical Data
Alternator Model |
HCI544 (UL/CSA Approved) |
Power |
600 kW |
Frequency/Speed |
60Hz/1800rpm |
Exciter Type |
Single Bearing, Brushless, Self-excited |
Power Factor |
0.8 |
Voltage Adjust Range |
≥5% |
Voltage Regulation NL-FL |
≤+1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase |
3 |
Deepsea Control Panel Technical Data
Model |
DSE (UL/CSA Approved) |
|||
The control module gives digital readouts of (Including but not limited to):
The control module has indicators for the following failure information (Including but not limited to):
Automatic shutdown occurs under (Including but not limited to):
|
||||
Options/Add-Ons Available
