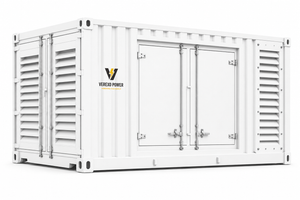

600 kW Diesel Generator (Perkins Engine) (480/277V Three Phase 60Hz)
The 600 kW Diesel Generator (Perkins Engine) (480/277V Three Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Powered by Perkins Engine, Stamford Alternator, and Deepsea Control Panel
Included Features
- Technologically advanced Remote Wifi Controller
- Next-Generation Brushless Stamford CSA Approved Alternator
- Inbuilt Webasto Style Coolant Heater to prevent cold starts and increase the engine's longevity
- Silent Soundproof Weather Protection Canopy/Enclosure
- Standard 8 Hour Dual Wall Base Fuel Tank
- Electronic Speed Governor
Prime power
This rating is for continuous electrical power supply (at variable load). There is no limit on the annual hours of operation, and 10% overload power can be supplied for 1 hour in 12.
Standby power
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Features
- Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load, 110% load and the checking and proving of all control and safety shut-down functions
- 24V DC start motor
- Equipped 24V high-performance maintenance-free lead-acid starting batteries
- Equipped with industrial silencer and flexible exhaust hose
- Designed to Comply with ISO8528/GB2820
General Data
Model Number |
MPP-600-3480-60 |
Power |
600 kW 750 kVA |
Voltage |
480/277V |
Phase |
3 (Three Phase) |
Power Factor |
0.8 |
Engine Manufacturer |
Perkins |
Alternator Manufacturer |
Stamford |
Control Panel Manufacturer |
Deepsea |
Perkins Engine Technical Data
Model |
2806C-E18TAG3 |
Manufacturer |
Perkins |
Number of Cylinders |
6 Cylinders in line |
Cycle |
4 Stroke |
Aspiration |
Turbocharged and air-to-air chargecooled |
Bore x Stroke (mm x mm) |
145 x 183 |
Displacement |
18.1 L |
Compression Ratio |
14.5:1 |
Prime Power/Speed |
618 kW/1800rpm |
Standby Power/Speed |
678 kW/1800rpm |
Speed Governor |
ECM |
Cooling System |
Forced Liquid Cooling Cycle |
Steady Speed Drop |
≤1% |
Total Coolant Capacity |
61 L |
Fuel Consumption at 100% Load |
209 g/kWh |
Starter Motor |
DC24V |
Alternator |
DC24V |
||
Stamford Alternator Technical Data
Alternator Model |
HCI634 CSA Approved |
Power |
600 kW |
Frequency/Speed |
60Hz/1800rpm |
Exciter Type |
Single Bearing, Brushless, Self-excited |
Power Factor |
0.8 |
Voltage Adjust Range |
≥5% |
Voltage Regulation NL-FL |
≤+1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase |
3 |
Deepsea Control Panel Technical Data
Model |
DSE |
|||
The control module gives digital readouts of (Including but not limited to):
The control module has indicators for the following failure information (Including but not limited to):
Automatic shutdown occurs under (Including but not limited to):
|
||||
Options/Add-Ons Available
