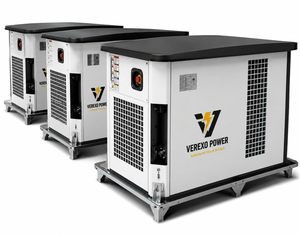

20 kW Natural Gas/Propane Generator (120/240V Single Phase 60Hz)
The 20 kW Natural Gas/Propane Generator (120/240V Single Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Verexo Power industrial generator sets are fully integrated power generation systems that provide optimum performance, dependability, and versatility for standby and prime power applications.
Included Features
- Technologically advanced Remote Wifi Controller
- Stand-alone robust Automatic Transfer Switch
- Dual Fuel Capability; Propane & Natural Gas
- High-end Liquid-Cooled Engine: Liquid Cooled Engines are longer-lasting & continuous duty (24h Operation) with true prime power. Standard Air-Cooled Engines are not as long-lasting or efficient as Liquid Cooled Engines.
- Next-Generation EPA Approved Natural Gas Engine to give you years of worry-free service while having minimal impact on the environment.
- Inbuilt Battery & Oil Heater to prevent cold starts and increase the engine's longevity.
- Electric Start
- Rotary Oil Filter
- Low Oil Pressure Shutdown
Remote Wifi Controller Features
- Auto/Manual/Shutdown
- Mains Voltage Detection
- Alternator Voltage Detection
- Low Oil Protection
- Over Frequency Protection
- Low-Frequency Protection
Model
Model |
MG20RSE-EB with Automatic Transfer Switch |
Fuel Type |
Natural Gas (NG), |
Output
Rated Power (LPG) |
20kw |
Rated Power (NG) |
18 kW |
Rated Current (LPG) |
86.9 |
Rated Current (NG) |
78.2 |
Engine /Alternator (rpm) |
3000 |
Power Factor |
1.0 |
Voltages |
110 / 220 V (Single Phase), 120 / 240 V (Single Phase), 208 V (Three Phase), 240 / 480 V (Three Phase), 575 V (Three Phase), 600 V (Three Phase) |
||
Engine Specifications
Features |
Electric Start, Rotary Oil Filter & Low Oil Pressure Shutdown |
Engine Manufacturer |
Suzuki |
Volume (cc) |
1216 |
Compression Ratio |
9.5:1 |
Ignition System |
ECM Ignition |
Starting Motor |
QDY 112, 12V, 0.8kW |
Bore x Stroke (mm x mm) |
L4 - 70 x 79 |
Aspiration Type |
Natural Aspiration |
Oil Capacity (L) |
3.5 |
Charging Method |
14V 70A Charging Motor |
Recommended Battery Start Current (CCA) |
550A |
Cooling System |
Liquid Cooled
|
Alternator Specifications
Features |
Features Brush |
Type |
Synchronous generator, a rotating magnetic field |
Voltage Regulation System |
AVR |
Pole |
2 |
THD at Full Load |
≤ 5% |
Insulation |
F |
Stator Winding Material |
Copper |
Rotator Winding Material |
Copper |
Connection Method |
Direct coupling |
||
Voltage Steady
Type |
Electron |
Sensing |
Single (Three) |
Voltage Adjusting |
± 1% |
||
Governor
Type |
Electron |
No Load to Full Load Frequency Regulation |
Synchronism |
Steady Frequency Adjustment |
± 0.5% |
||
Controller
Features |
Features Auto/Manual/Shutdown, Alternator Voltage Detection, Low Oil Protection, Over Frequency Protection & Low-Frequency Protection |
Controller Location |
Inside, beside the alternator |
Enclosure
Features |
Emergency Stop Switch & Enclosed Muffler |
Canopy |
Powder Coating |
Protection Level |
IP 23 |
Solenoid Valve |
Dual Solenoid Valve |
Sound Insulation |
Double metal plate + Soundproof cotton |
Noise at normal speed 23ft (7M) dB(A) |
75 |
NG Consumption 100% Load m3/hr |
7.26 |
LPG Consumption 100% Load kg/hr |
3.80 |
NG Pressure Range kPa |
1.3 - 3.5 |
LPG Pressure Range kPa |
1.7 - 3.5 |
Unit Dimension
|
1200 x 740 x 826 |
Package Dimensions
|
1290 x 800 x 900 |
Net Weight (kg) |
345 |
Gross Weight (kg) |
370 |
OPTIONS/ADD-ONS AVAILABLE
