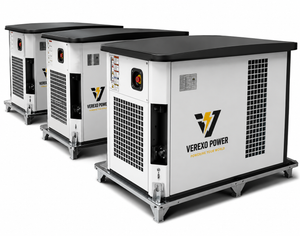

15 kW Natural Gas/Propane Generator (120/240V Single Phase 60Hz)
The 15 kW Natural Gas/Propane Generator (120/240V Single Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Model
Model |
MG15RSE-EB |
Fuel Type |
Natural Gas (NG), |
Output
Rated Power (LPG) |
15kw |
Rated Power (NG) |
14 kW |
Rated Current (LPG) |
65.2 |
Rated Current (NG) |
60.9 |
Engine /Alternator (rpm) |
3000 |
Power Factor |
1.0 |
Engine Specifications
Features |
Electric Start, Rotary Oil Filter & Low Oil Pressure Shutdown |
Volume (cc) |
998 |
Compression Ratio |
9.5:1 |
Ignition System |
ECM Ignition |
Starting Motor |
QDY 112, 12V, 0.8kW |
Bore x Stroke (mm x mm) |
L4 - 65.5 x 74 |
Aspiration Type |
Natural Aspiration |
Oil Capacity (L) |
3.5 |
Charging Method |
12V 45Ah |
Recommended Battery Start Current (CCA) |
525A |
Cooling System |
Liquid Cooled |
||
Alternator Specifications
Features |
Features Brush |
Type |
Synchronous generator, a rotating magnetic field |
Voltage Regulation System |
AVR |
Pole |
2 |
THD at Full Load |
≤ 5% |
Insulation |
F |
Stator Winding Material |
Copper |
Rotator Winding Material |
Copper |
Connection Method |
Direct coupling |
||
Voltage Steady
Type |
Electron |
Sensing |
Single (Three) |
Voltage Adjusting |
± 1% |
||
Governor
Type |
Electron |
No Load to Full Load Frequency Regulation |
Synchronism |
Steady Frequency Adjustment |
± 0.5% |
||
Controller
Features |
Features Auto/Manual/Shutdown, Alternator Voltage Detection, Low Oil Protection, Over Frequency Protection & Low-Frequency Protection |
Controller Location |
Inside, beside the alternator |
Enclosure
Features |
Emergency Stop Switch & Enclosed Muffler |
Canopy |
Powder Coating |
Protection Level |
IP 23 |
Sound Insulation |
Double metal plate + Soundproof cotton |
Noise at normal speed
|
72 |
NG Consumption 100% Load m3/hr |
5.2 |
LPG Consumption 100% Load kg/hr |
3.5 |
NG Pressure Range kPa |
1.3 - 3.5 |
LPG Pressure Range kPa |
1.7 - 3.5 |
Unit Dimension
|
1200 x 740 x 826 |
Package Dimensions
|
1290 x 800 x 900 |
Net Weight (kg) |
325 |
Gross Weight (kg) |
350 |
||
