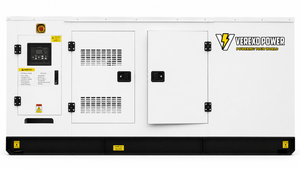

100 kW Natural Gas/Propane Generator (208/120V Three Phase 60Hz)
The 100 kW Natural Gas/Propane Generator (208/120V Three Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Model
Model |
MNG100REG |
Fuel Type |
Natural Gas (NG), |
Output
Rated Power (LPG) |
100 kw |
Rated Power (NG) |
100 kW |
Frequency |
60 Hz |
Engine/Alternator (rpm) |
1800 |
Power Factor |
0.8 |
||
Engine Specifications
Engine Model |
K6BT5.9 |
Engine Power |
110 kW |
Displacement |
5.9 L |
Speed |
1800 RPM |
Compression Ratio |
10:1 |
Bore x Stroke (mm x mm) |
102 x 120 |
Cooling Method |
Liquid Cooled |
Oil Capacity (L) |
14.2 |
Mixer |
IMPCO USA |
Ignition System |
Made in Canada |
Speed Governor |
WOODWARD |
||
Alternator Specifications
Type |
Brushless, Self-excited |
Power |
100 kW |
Connection Method |
SAE Standard |
Insulation Grade |
H |
SmartGen Controller
Features |
Features Auto/Manual/Shutdown, Alternator Voltage Detection, Low Oil Protection, Over Frequency Protection & Low-Frequency Protection |
Enclosure
Features |
Emergency Stop Switch & Enclosed Muffler |
Canopy |
Powder Coated, Sound Insulated, Weatherproof/ Soundproof Enclosure |
Protection Level |
IP 23 |
NG Consumption 100% Load m3/kW*hr |
0.3 |
LPG Consumption 100% Load kg/hr |
9.3 |
NG Pressure Range kPa |
1.5 - 5 |
LPG Pressure Range kPa |
1.7- 5 |
Dimension (L x W x H) mm |
3000 x 1100 x 1600 |
Net Weight (kg) |
2180 |
||
OPTIONS/ADD-ONS AVAILABLE
