100 HP Rotary Screw Air Compressor Select Phase and Voltage
100 HP Rotary Screw Air Compressor Complete System
The 100 HP Rotary Screw Air Compressor Complete System is supplied by Verexo Power for reliable compressed-air performance in demanding shops and industrial facilities. It is built for quality, efficiency, and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
The Latest Generation Verexo Power 100 HP Rotary Screw Air Compressor Complete System
The Complete System Includes:
- (1x) 100 HP Rotary Screw Air Compressor
- (1x) 495 CFM Refrigerated Air Dryer (High Temp Rated with Automatic Electronic Moisture Drain Valve)
- (1x) Vertical Standing 80 Gallon Compressed Air Receiver Tank (Rated @ 175 PSI)
- (Set of 3x) C + T + A High Precision Air Filters
- (Set of 3x) Centrifugal Automatic Moisture Drain Valves

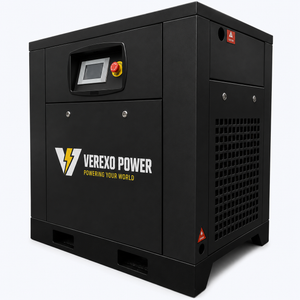

100 HP Rotary Screw Air Compressor
Model |
MST-75VFD |
kW/HP |
75 kW / 100 HP |
CFM & PSI |
486 CFM @ 102 PSI Heavy-duty Industrial Air Delivery |
Adjustable Pressure |
Pressure can be adjusted from 50 PSI to 145 PSI |
Pressure Rating |
145 PSI |
Outlet Size |
2 Inch |
Dimensions |
75 x 49 x 63 Inches (L*W*H) |
Weight |
2952 lbs |
Duty Cycle |
Continuous Duty (100% Duty Cycle) |
Oil Type |
ISO46 Compressor Oil (Synthetic and Non-Detergent) |
- Full-colour LED Touchscreen Programmable Logic Controller with Variable Frequency Drive which features Soft Start (Preprogrammed Plug & Play System)
- Heavy Duty Inbuilt Thermostatically Controlled Cooling Fan
- Heavy Duty Air Filter, Oil Filter and Air/Oil Separator
- Direct Drive results in low maintenance and high efficiency by eliminating any power transmission losses due to belts and pulleys
- TEFC IE4 Permanent Magnet Heavy-duty Induction Motor
- Variable Frequency Drive to adjust the airflow on demand

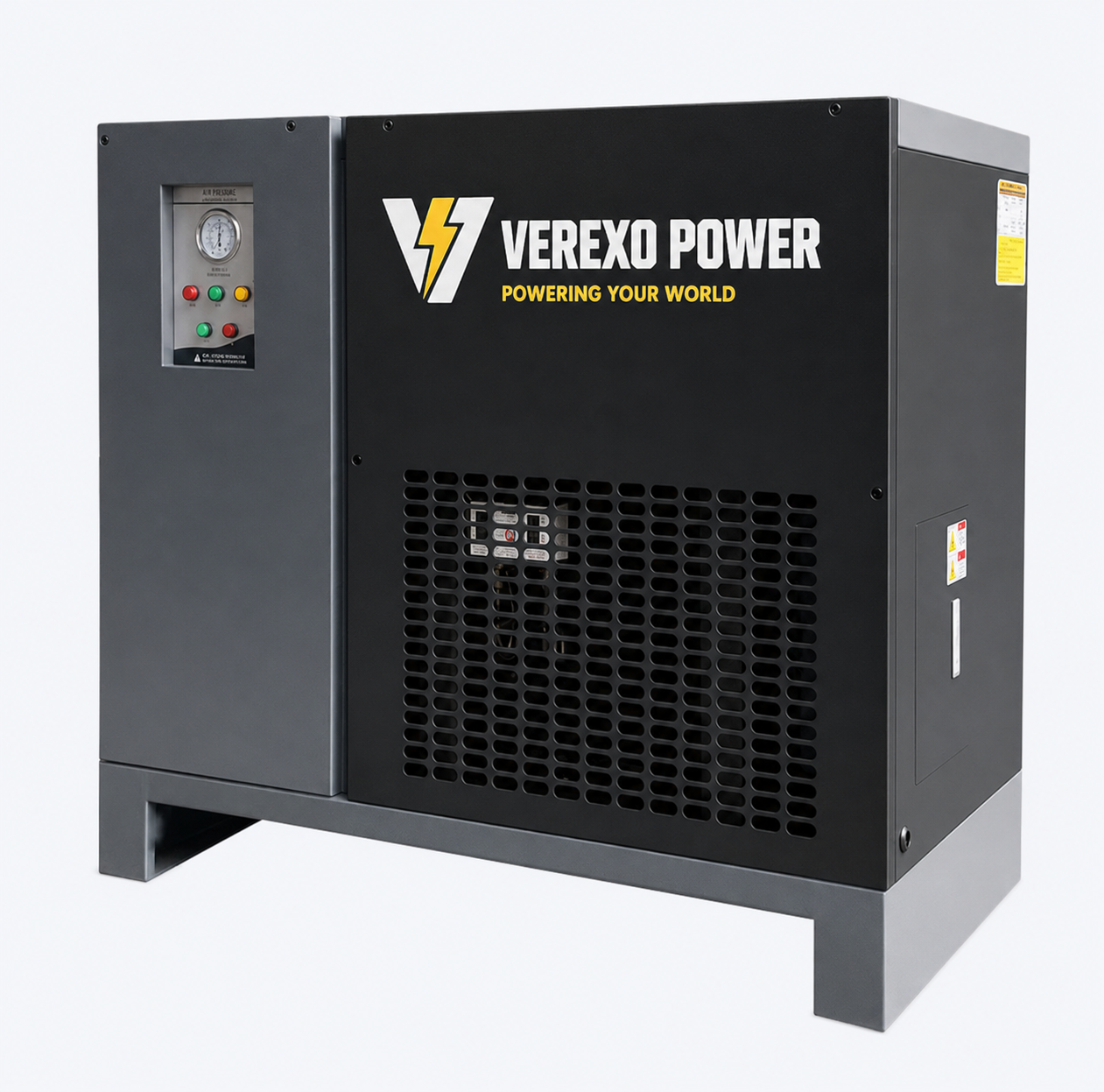

495 CFM Refrigerated Air Dryer
Model |
MSTD100 |
Operating Pressure |
≤ 145 PSI |
Voltage / Phase / Hertz |
460-480V / 3 PH / 60 HZ |
Air Capacity |
≤ 495 CFM |
Weight |
397 lbs |
Dimensions |
52 x 27 x 49 Inches (L*W*H) |
Inlet Temperature |
≤ 80°C |
Pressure Dew Point |
2-10°C |
Refrigerant |
R134A |
Duty Cycle |
Continuous Duty (100% Duty Cycle) |
- High Temp Rated with Automatic Electronic Moisture Drain Valve
Complete System
- Preprogrammed Plug & Play System; Comes ready to use, connect your electrical, connect the equipment, and turn it on!
- Inbuilt Programmable Logic Controller
- TEFC IE4 Permanent Magnet Heavy-duty Induction Motor
- Energy Efficient Design
- Vertical Space-Saving Air Tank Design
- Low Maintenance, No Supervision needed due to smart design highly energy-efficient VFD saves a lot of electricity due to pre-programmed air on-demand smart control system
OPTIONS/ADD-ONS AVAILABLE
The 100 HP Rotary Screw Air Compressor Complete System is supplied by Verexo Power for reliable compressed-air performance in demanding shops and industrial facilities. It is built for quality, efficiency, and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
The Latest Generation Verexo Power 100 HP Rotary Screw Air Compressor Complete System
The Complete System Includes:
- (1x) 100 HP Rotary Screw Air Compressor
- (1x) 495 CFM Refrigerated Air Dryer (High Temp Rated with Automatic Electronic Moisture Drain Valve)
- (1x) Vertical Standing 80 Gallon Compressed Air Receiver Tank (Rated @ 175 PSI)
- (Set of 3x) C + T + A High Precision Air Filters
- (Set of 3x) Centrifugal Automatic Moisture Drain Valves
100 HP Rotary Screw Air Compressor
Model |
MST-75VFD |
kW/HP |
75 kW / 100 HP |
CFM & PSI |
486 CFM @ 102 PSI Heavy-duty Industrial Air Delivery |
Adjustable Pressure |
Pressure can be adjusted from 50 PSI to 145 PSI |
Pressure Rating |
145 PSI |
Outlet Size |
2 Inch |
Dimensions |
75 x 49 x 63 Inches (L*W*H) |
Weight |
2952 lbs |
Duty Cycle |
Continuous Duty (100% Duty Cycle) |
Oil Type |
ISO46 Compressor Oil (Synthetic and Non-Detergent) |
- Full-colour LED Touchscreen Programmable Logic Controller with Variable Frequency Drive which features Soft Start (Preprogrammed Plug & Play System)
- Heavy Duty Inbuilt Thermostatically Controlled Cooling Fan
- Heavy Duty Air Filter, Oil Filter and Air/Oil Separator
- Direct Drive results in low maintenance and high efficiency by eliminating any power transmission losses due to belts and pulleys
- TEFC IE4 Permanent Magnet Heavy-duty Induction Motor
- Variable Frequency Drive to adjust the airflow on demand
495 CFM Refrigerated Air Dryer
Model |
MSTD100 |
Operating Pressure |
≤ 145 PSI |
Voltage / Phase / Hertz |
460-480V / 3 PH / 60 HZ |
Air Capacity |
≤ 495 CFM |
Weight |
397 lbs |
Dimensions |
52 x 27 x 49 Inches (L*W*H) |
Inlet Temperature |
≤ 80°C |
Pressure Dew Point |
2-10°C |
Refrigerant |
R134A |
Duty Cycle |
Continuous Duty (100% Duty Cycle) |
- High Temp Rated with Automatic Electronic Moisture Drain Valve
Complete System
- Preprogrammed Plug & Play System; Comes ready to use, connect your electrical, connect the equipment, and turn it on!
- Inbuilt Programmable Logic Controller
- TEFC IE4 Permanent Magnet Heavy-duty Induction Motor
- Energy Efficient Design
- Vertical Space-Saving Air Tank Design
- Low Maintenance, No Supervision needed due to smart design highly energy-efficient VFD saves a lot of electricity due to pre-programmed air on-demand smart control system
OPTIONS/ADD-ONS AVAILABLE
