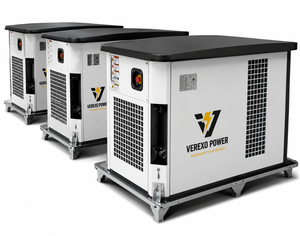

10 kW Natural Gas/Propane Generator (208/120V Three Phase 60Hz)
The 10 kW Natural Gas/Propane Generator (208/120V Three Phase 60Hz) is supplied by Verexo Power for dependable power in commercial and industrial applications. It is built with higher-quality components for reliable operation and long service life.
- Backed by a 10-year manufacturer's warranty.
- Free shipping included.
- Current lead time: 5-7 weeks.
- Contact us for a quote if needed: sales@verexo-power.com.
Product Details
Model
Model |
MG10REG |
Fuel Type |
Natural Gas (NG), |
Output
Engine/Alternator (rpm) |
3000 |
Power Factor |
1.0 |
Engine Specifications
Features |
Electric Start, Rotary Oil Filter & Low Oil Pressure Shutdown |
Volume (cc) |
688 |
Compression Ratio |
8.5:1 |
Ignition System |
Transistor Non-Contact Ignition |
Starting Motor |
12V, 0.8kW |
Bore x Stroke (mm x mm) |
V2 - 78 x 72 |
Aspiration Type |
Natural Aspiration |
Oil Capacity (L) |
1.4 |
Charging Method |
12V/3A Charging Coil |
Recommended Battery Start Current (CCA) |
18Ah - 45Ah |
Cooling System |
Air Cooled |
||
Alternator Specifications
Features |
Features Brush |
Type |
Synchronous generator, a rotating magnetic field |
Voltage Regulation System |
AVR |
Pole |
2 |
THD at Full Load |
≤ 5% |
Insulation |
F |
Stator Winding Material |
Copper |
Rotator Winding Material |
Copper |
Connection Method |
Direct coupling |
||
Voltage Steady
Type |
Electron |
Sensing |
Single |
Voltage Adjusting |
± 5% |
||
Governor
Type |
Mechanical |
No Load to Full Load Frequency Regulation |
Synchronism |
Steady Frequency Adjustment |
± 2.5% |
||
Controller
Features |
Features Auto/Manual/Shutdown, Alternator Voltage Detection, Low Oil Protection, Over Frequency Protection & Low-Frequency Protection |
Controller Location |
Inside, above the alternator |
Enclosure
Features |
Features Enclosed Muffler |
Canopy |
Powder Coating |
Protection Level |
IP 23 |
Sound Insulation |
Double metal plate + Soundproof cotton |
Noise at normal speed
|
69 |
Unit Dimension
|
1150 x 670 x 740 |
Package Dimensions
|
1230 x 760 x 880 |
Net Weight (kg) |
230 |
Gross Weight (kg) |
255 |
||
OPTIONS/ADD-ONS AVAILABLE
